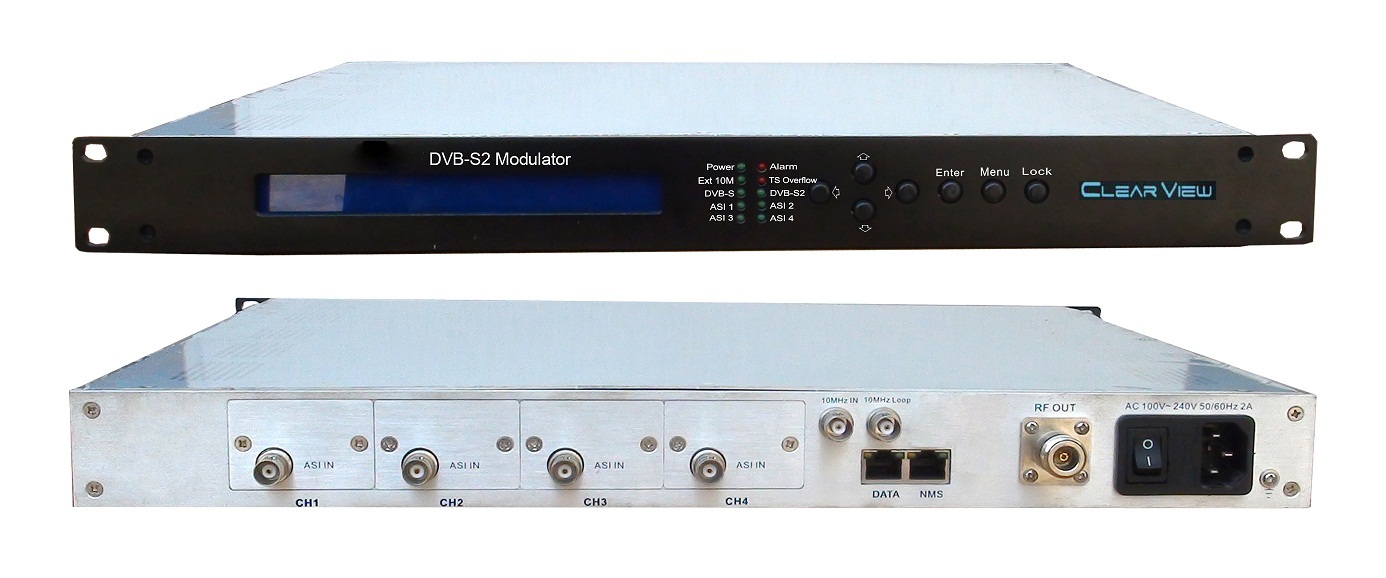

ClearView KR3204F Professional DVBS2 Modulator


Short Description


KR3402F Professional DVBS2 modulator

Our KR3402F is a high-performance DVBS2 modulator developed to the
EN302307 standard It converts ASI and IP signals alternatively into
a digital DVB-S2 RF output. BISS scrambling mode is available in this
DVB-S2 modulator, which helps to safely distribute your programming.
It is easy to control with local panel control and NMS software.
With its high cost-effective design, our KR3402F DVB-S2 modulator
is widely used for broadcasting, interactive services, news gathering
and other broadband satellite applications.

Fully complies with DVB-S2 (EN302307) and DVB-S (EN300421) standard
1 ASI input with the 3 others for hot backup
Supports IP signal input
Constant temperature crystal oscillator, as high as 0.1ppm stability
Supports 1 external 10MHz reference clock input with loop out
Supports BISS 0, 1 and E scrambling
Supports local and remote control
Output frequency range: 50-800MHz, in 1KHz steps

1 x ASI input with the 3 others for hot backup
Supports 188/204Byte Transmission Stream Packet
ASI Input Connector: BNC, Impedance 75Ω
1 x IP Input (RJ45, 100M TS Over UDP)
1 x 10Mhz Input (BNC Interface) with loop through

IF model 3402F Range: 50 to 800 MHz, in 1KHz steps
RF model 3402A Range: 950 to 2150MHz in 10KHz steps
Output Level Attenuation: -31.5dBm -0dBm,in 0.5dB steps
MER > 40dB
Connector: N type, impedance 50 ohms

DVB-S Outer coding: RS Coding
DVB-S2 Outer coding: BCH Coding
DVB-S Inner coding: Convolution
DVB-S2 Inner coding: LDPC Coding
DVB-S FEC: 1/2,2/3,3/4,5/6,7/8
QPSK: 1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
DVB-S Constellation: QPSK
DVB-S2 Constellation: QPSK, 8PSK
DVB-S and DVBS2 Roll-off Factor: 0.2, 0.25, 0.35
DVB-S Symbol Rate: 0.5~45MBauds
DVB-S Symbol Rate: QPSK 0.5-45MBauds 8PSK 0.5-30MBauds

Biss Scrambling: Mode 0, mode 1, mode E

Dimensions: 482mm x 410mm x 44mm
Temperature: 0 to 45c (operational), -20 to 80c (storage)
Power: 100 to 240VAC 50/60Hz 20 Watts
Weight: 4.9Kg
