ClearView HD3111+ 1 HDMI/CVBS In SD/HD ISDBT/DVBT Modulator

Description

This Modulator is for Brasil and South America and ISDBT/DVBT 6M Countries.

Please see our Alibaba site for Export Orders

Features

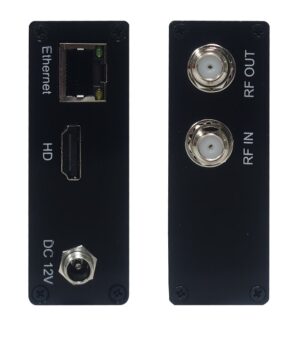

The HD Encoder Modulator supports 1 HDMI or 1 CVBS input and 1 RF F female
output with loop in..
After encoding and modulating, the input signal can be directly outputted or mixed with
the original TV signal. It can be widely used in home entertainment,
security, protection monitoring, hotel LCD panels, shopping mall advertising etc..

Specifications
Input: HDMI (Type A) x 1 The HDMI Input supports HDCP (HD)
or 3 x RCA CVBS / Audio Right Left inouts (SD)
Output: ISDBT/DVBT-6MHz modulator (F female)
Frequency Range: 150 – 950 MHz in 0.1MHz steps

System
Local Interface  control buttons + LCD panel
SW Upgrade vis USB Port

Video
Input Format: HDMI for HD, CVBS for SD
Encoding: Both HDMI and CVBS: MPEG4 H.264/AVC
Resolution: HDMI: up to 1920x1080_60p , 1920x1080_50p on HD
                   576i on SD
Connector: HDMI Type A (HD) and 3 x RCA (SD)

Audio
Input Format: HDMI and CVBS
Encoding Format: ADPCM, MPEG-1 layer 2 audio and AAC-LC streams.
Connector: HDMI embedded audio, CVBS Righ and Left Audio RCA

DVBT Modulation
Standard: DVB-T COFDM
Bandwidth:  6/7/8 MHz
Mode: 2K/8K
MER > 32dB
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Constellation: QPSK/16QAM/64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4
Frequency Range: 150 – 950 MHz in 0.1MHz steps
Output Level: 60 ~ 107dBuV

ISDB-T Modulation
Standard: ARIB STD-B31
Bandwidth:  6 MHz
Mode: 2K/4K/8K
Constellation: QPSK/16QAM/64QAM
MER > 32dB
Guard Interval: 1/32, 1/16, 1/8, 1/4
Frequency Range: 150 – 950 MHz in 0.1MHz steps
Output Level: 60 ~ 107dBuV

General
Power Supply:  100-240VAC 50/60Hz via 12 VDC Plugpack
Operating Temperature: 0 to +50 degrees C
Storage Temperature: -10 to +70 degrees C
Size 190 x 110 x 50 mm
Weight: 1.0Kg
