ClearView tinyDVBT2 very small DVBT2 Digital HD Receiver


ClearView tinyDVBT2 very small DVBT2 Digital HD Receiver

SKU: tinyDVBT2 Categories: , ,


This Tiny DVBT/T2 receiver is suitable to upgrade older
MPEG2 TVs. It can be placed at the back of the TV.
The IR Target and LED display run to the front of the TV
making it unobtrusive.Only 123 x 75 x 23mm in size..

• Fully Compliant with DVB-T2 and DVB-T
• Supports MEPG-4 AVC(H.264) MP/HP@L4.1
• Supports MEPG-2 MP@HL/ML
• HE AAC5.1, HE AAC+, DD, DD+ Dolby
• Multi Bandwidth: 6M 7M & 8M
• Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers
• Video decoding and output: 1080p/1080i/720p
• Analogue Video output: PAL/NTSC
• Conversion between SD programs and HD programs
• USB2.0 supported for upgrade, PVR and time shifting
• SupportParental Control,Teletext,Subtitle
• Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
• Electronic program guide (EPG)
• Software upgrade (OAD or USB)
• 32 bits true color OSD
• Program editor
• Supports Favourite Group
* IR Target and LED Display Extender included
* HDMI Lead Included


CPU and Memory CPU MSTAR 7T00
DDR2 DDR2 512Mbit(64MByte)
Flash 32Mbit(4MByte)
DVB-T2 Standard  Fully compliant with ETSI EN 302 755 ( DVB-T2 )
Tuner Tuner R836 & MXL608

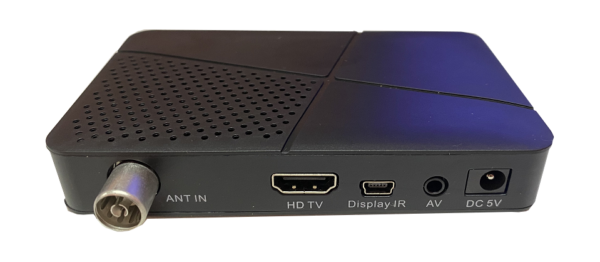

Connector Type RF In/ANT In(IEC-Female),RF LOOP/ANT LOOP(IEC-Male)
Input Frequency (UHF)470866MHz, (VHF)170231MHz
Bandwidth 6, 7, 8MHz
Signal Input Level  -78-20dBm
Input Impedance 75 Ohm
Active Antenna 5V(On/Off), Imax=100mA
Demodulation Scheme QPSK, 16-QAM, 64-QAM, 256-QAM
FFT 1K, 2K, 4K, 8K, 16K, 32K
FECE mode 1/2, 2/3, 3/4, 3/5, 4/5, 5/6
Guard Interval 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256
Software Function OS ECOS
EPG Fully support to 7 days Electronic Program Guide(EPG)
Video Decoding MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4
Video Format avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts
Audio  Decoding MPEG-1/2/3/4, wma
Audio Format mp3, wma, agg
Picture Format JPEG, BMP, PNG
Video Resolution 480i, 480P, 576i, 576P, 720P, 1080i, 1080P
Video Aspect Ratio 4:3(LB/SCAN), 16:9(LB/FIT)
Analog Video System PAL, NTSC, SECAM
OSD Language nine kinds of language
LCN Sort Support Logic Channel Number(LCN)
Teletext VBI insertion for Teletext,CC and WSS
Time Shift Support Time Shift
Hardware Interface Video Output RCA(CVBS, L/R),  HD Interface
USB Interface 1*USB2.0
Power supply DC5V 1.2A 5WMax
Appliactions  Megogo Youtube RSS Weather IPTV Application support Megogo Youtube RSS Weather IPTV Support USB import IPTV programs, as txt,xml,m3u files.. Connect to the Internet by plugging in a USB WIFI Dongle

Additional information

Weight 0.500 kg
