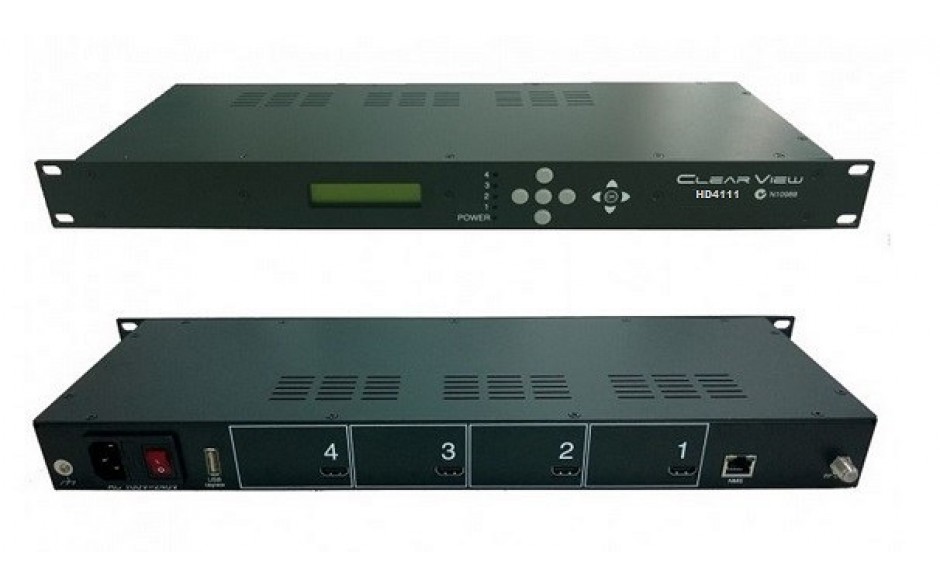

ClearView HD4111 Quad HD MPEG4 DVBT Modulator 4RF Carriers Out

Description

* Each channel can be set to up to 22.8MBits/sec
* Works flawlessly on live Fox Sports
* Dual power available with optional 2nd 12V 5A Power Pack
* eMail Alarm reporting on Power Suppy Failure
* Rack Position when several units are used in the one installation

The optional 2nd 12V 5A power adaptor available here

CVBS to HDMI Upscaler to convert inputs to CVBS SD available here

4 way USB Splitter to connect up to 4 HDMI Upscalers to one modulator
available here

See Brochure Here

Quick Setup Guide

Specifications :

Encoding
Video(HDMI)
Encoding             MPEG4
Interface              HDMI x 4 (Type A receptacle)
Resolution          1920 x1080_30p,
Aspect Ratio       4:3 ; 16:9
Audio(HDMI)
Encoding             MPEG-1 Layer II
Interface               HDMI x 4
Sample rate        48KHz , 44.1KHz or under

Modulation
Standard               DVBT ETSI EN300744,  ISDBT ARIB STD-B31
FFT mode             2K/8K
Bandwidth            7M/8M, 6M for ISDBT
Constellation       QPSK/16QAM 64QAM
Guard interval      1/4, 1/8, 1/16, 1/32
Code rate             1/2, 2/3, 3/4, 5/6, 7/8
Frequency range  177.5~226.5MHz
522.5~816.5MHz   4 x RF Carriers Out

System
Local interface       LCD+control buttons
Remote management       Web NMS
NMS Interface         RJ45
Language               English

Output
Output level           70 to102dBuV
MER                        >
36dB
Connector type      F’ female

General
Dimensions         483 x 203 x 45 cm
Weight                   1.3kg
Power supply       AC 100 to 240V  and 12V 5A DC Optional Adaptor
Operation temperature   0 to 50 degrees C
