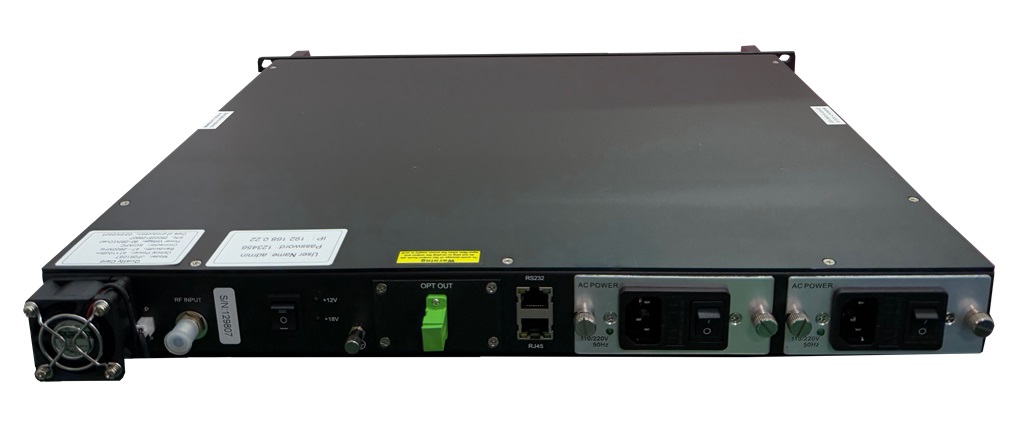

ClearView TX1550X CATV and Satellite Optical Transmitter

Product Description

TX-1550X series is a 1550nm CATV + satellite TV directly modulated optical transmitter, which uses
a high linear cooling DFB laser. It can transmit 47 ~ 862MHz analog & digital signals of CATV and
950 ~ 2400MHz satellite TV signals on one optical fibre. It provides a complete set of high-quality,
low-cost fibre-optic trunk transmission of satellite live television (DBS) and cable television (CATV)
for fibre-to-the-building (FTTB), fibre-to-the-Home (FTTH) Solutions.

Specifications

Optical Index
Laser Wavelength nm
1540, 1550, 1563
1550nm Compatible with ITU wavelength
No. of Output Ports 1, up to 6 if specified by user
Output Power per Port 3mW
Laser Line-width MHz 0.65@1550nm 1.0@1563nm
SMSR 45@1540nm 50dB@1550nm
RIN-160dB RIN（20~2600MHz）
Optical Return Loss 50 dB
Fibre Connector SC/APC FC/APC LC/APC

IF Index
Operating Bandwidth 47 to 2400MHz
Input Level-40 to -25dBm
Flatness -2.0 to +2.0dB @ 950～2400MHz
Return Loss 18dB
Input Impedance 75ohm
RF connector F type
No.of Test Channels 36CH
CNR 28dB
CTB 3dB6
CSO 36dB
TO LNB Voltage 0/13/18V Switchable
TO LNB Current 300mA

General Index
Network Management Interface SNMP,WEB supported
Power Supply 90 to 265 VAC
Power Consumption 38W Dual power supply, 1+1standby
Operating Temp -5 to +65℃ Auto case temp control
Storage Temp 40 to +85 ℃ –
Operating Relative Humidity  5 to 95 %
Dimension mm 370×483×44 D、W、H
Weight 4Kg
