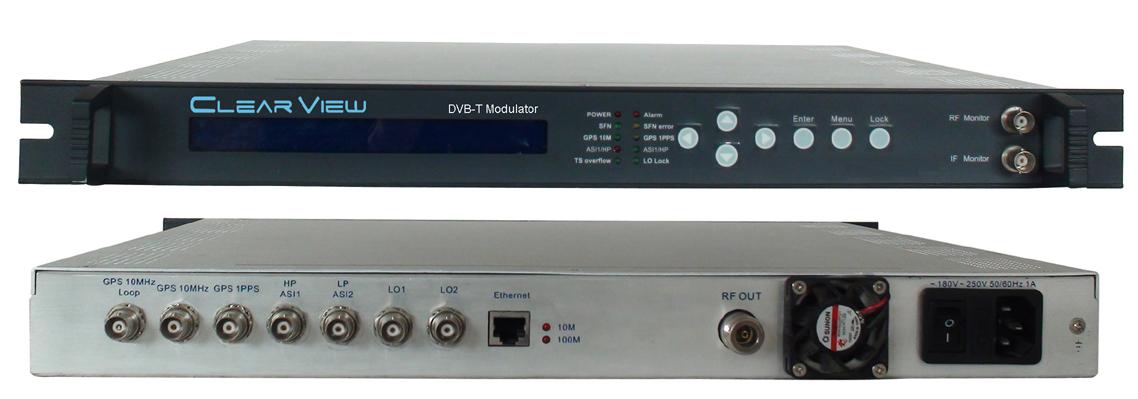

ClearView KR2401 DVBT Modulator with ASI in


Short Description


KR2401 DVBT Modulator with ASI in


The KR2401 DVB-T Modulator is a high performance modulator
developed according to DVB-T (EN300744) standards
It incorporates advanced framing structure, channel coding
and modulation technology
It also supports both MFN (Multi-frequency network)
and and SFN (single frequency network) configurations
It has 2 ASI input ports, one GPS 10MHZ input port
and one 1 PPS input port
In order to improve the output performance of the transmitter
the DVB-T modulator can simultaneously support linear
and nonlinear pre-correction
This device supports local and remote control through NMS software

If this unit is not in stock it will take 30 days to procure


* Fully compliant with DVB-T standard (EN300744)
* Both SFN and MFN support
* 2 ASI input ports for hot backup
* PID filtering and re-mapping support
* Supporting linear and non-linear correction
* 10MHz outer reference clock input
* Full output frequency range
* LCD / front keyboard operation
* Network Management System support


Supports both packet and byte mode TS input
Supports 188/204Byte transmission stream packets
Two ASI inputs, supporting hot backup
ASI input connector: BNC, impedance 75Ω

RF Output

Frequency is continuously adjustable from 110 to 870 MHZ
in 1Hz steps
Output Level attenuation is continuously adjustable from
0 to -16 dB; in 0.1 dB steps
Maximum Output level: 0dBm
MER ≥40dB
Bandwidth: 6MHz,7MHz or 8MHz Selectable
Connector: N type, impedance 50Ω

Channel encoding and modulation

Code rate 1/2, 2/3, 3/4, 5/6, and 7/8
Constellation QPSK, 16QAM or 64QAM
Roll off factor 1, 2, or 4
Guard Interval 1/4, 1/8, 1/16 or 1/32


Dimensions (W x D x H) 482mm x 410mm x 44.5mm
Weight 5.1Kg
Temperature range 0~45 deg C(Operation), -20~80 deg C(Storage)
Power requirement AC110V 50/60Hz, AC 240V 50/60Hz
Power consumption 20W
