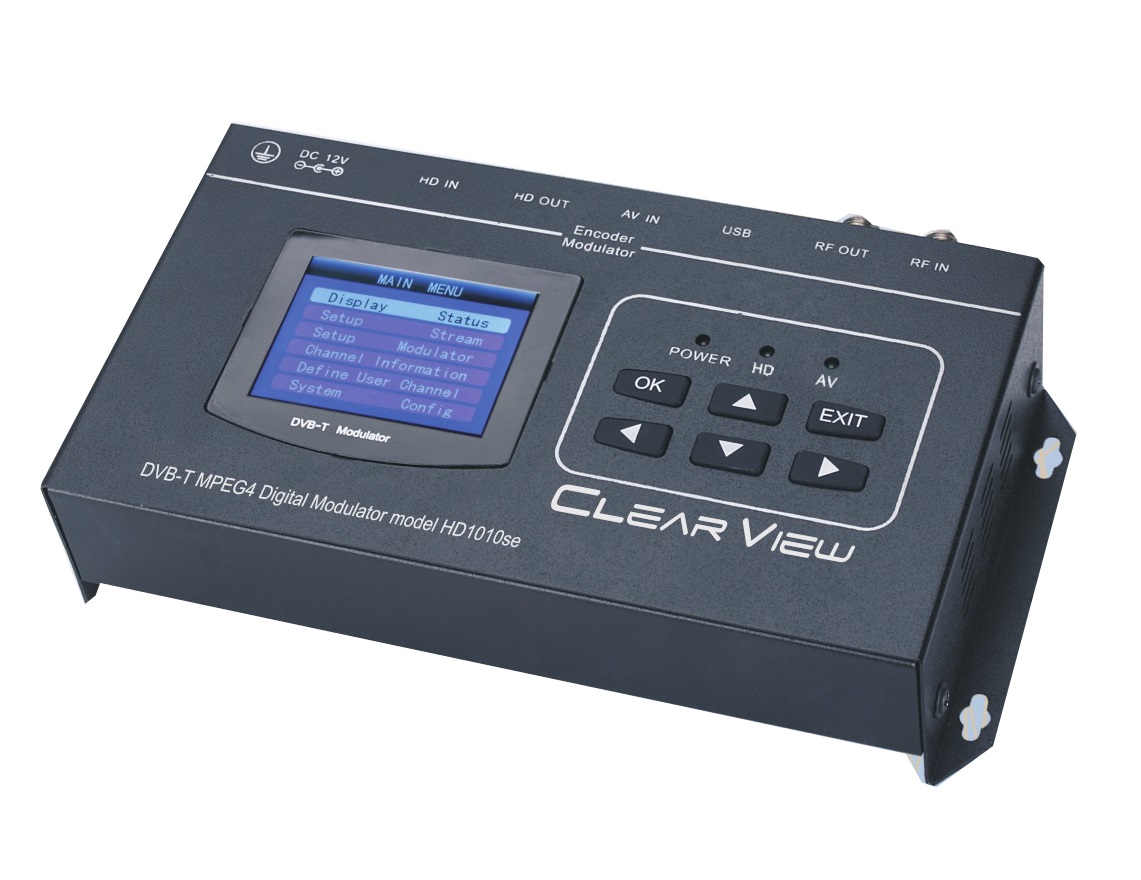

ClearView HD1010se HD MPEG4 Modulator with HDMI Loop Through and CVBS input

$299.00

ClearView HD1010se HD MPEG4 Modulator with HDMI Loop Through and CVBS input

SKU: hd1010se Categories: ,

Description

The HD1010se is a low cost digital modulator with HDMI and CVBS inputs, plus a HDMI Loop output.



Specifications

HDMI Encoding Section
Encoding: MPEG-4 AVC/H.264
Video Resolution: 1920 x 1080p@60, 1920 x 1080p@50, 1920 x 1080i@60,
1920 x 1080i@50, 1280 x 720p@60, 1280 x 720p@50
Aspect ratio: 16:9, 4:3
Bit rate: 1.000-18.000 Mbps, Auto.

Audio Encoding: MPEG1 Layer II
Sample rate: 48KHz
Bit rate: 64, 96, 128, 192, 256, 320kbps

CVBS Encoding Section
Input: PAL, NTSC

DVB-T Modulator Section
Standard: DVB-T COFDM
Bandwidth: 6M, 7M, SM
Constellation: QPSK, 160AM, 64QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval: 1/32, 1/16, 1/8, 1/4
Transmission mode: 2K, SK
MER: >31dB
RF frequency: 50-950 MHz
RF output level: 0- +6dBm

System
Upgrade: USB
Power supply: DC 12V
Operation temperature: 0- to 45 deg C

Additional information

Weight 1200 kg
